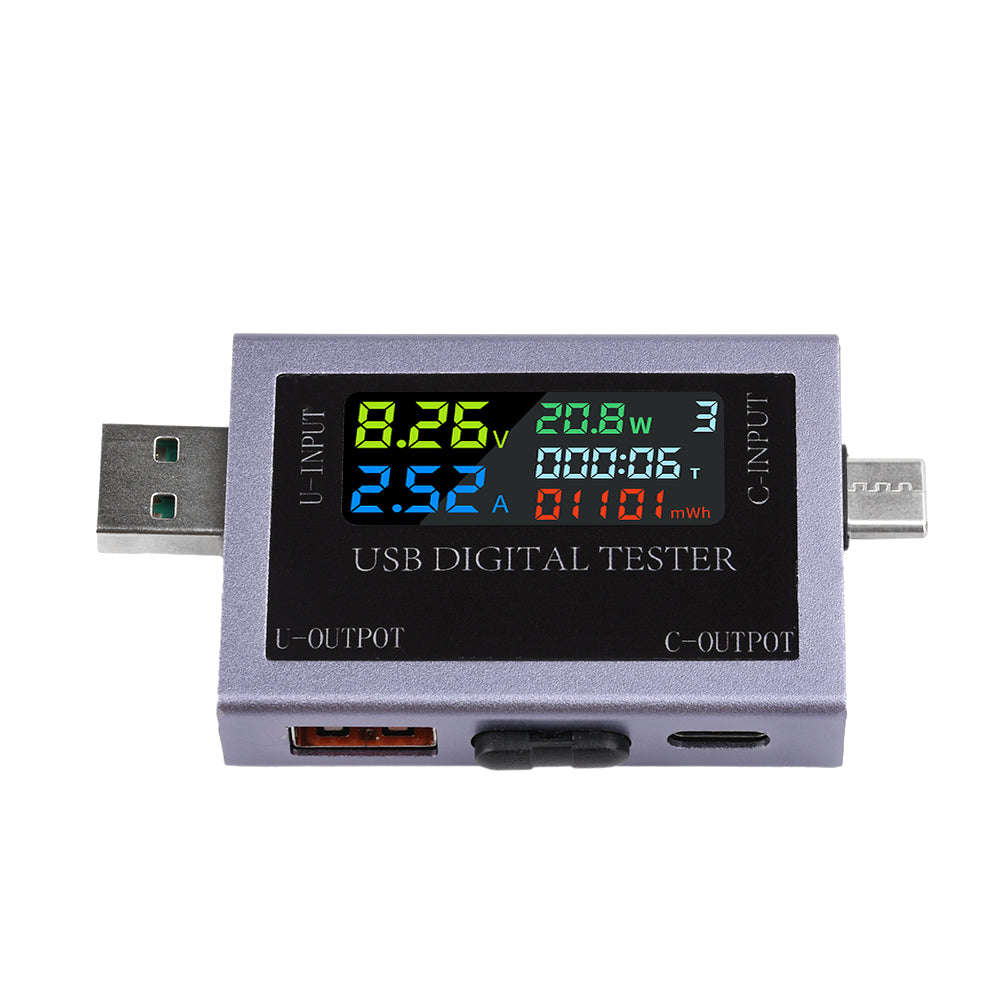

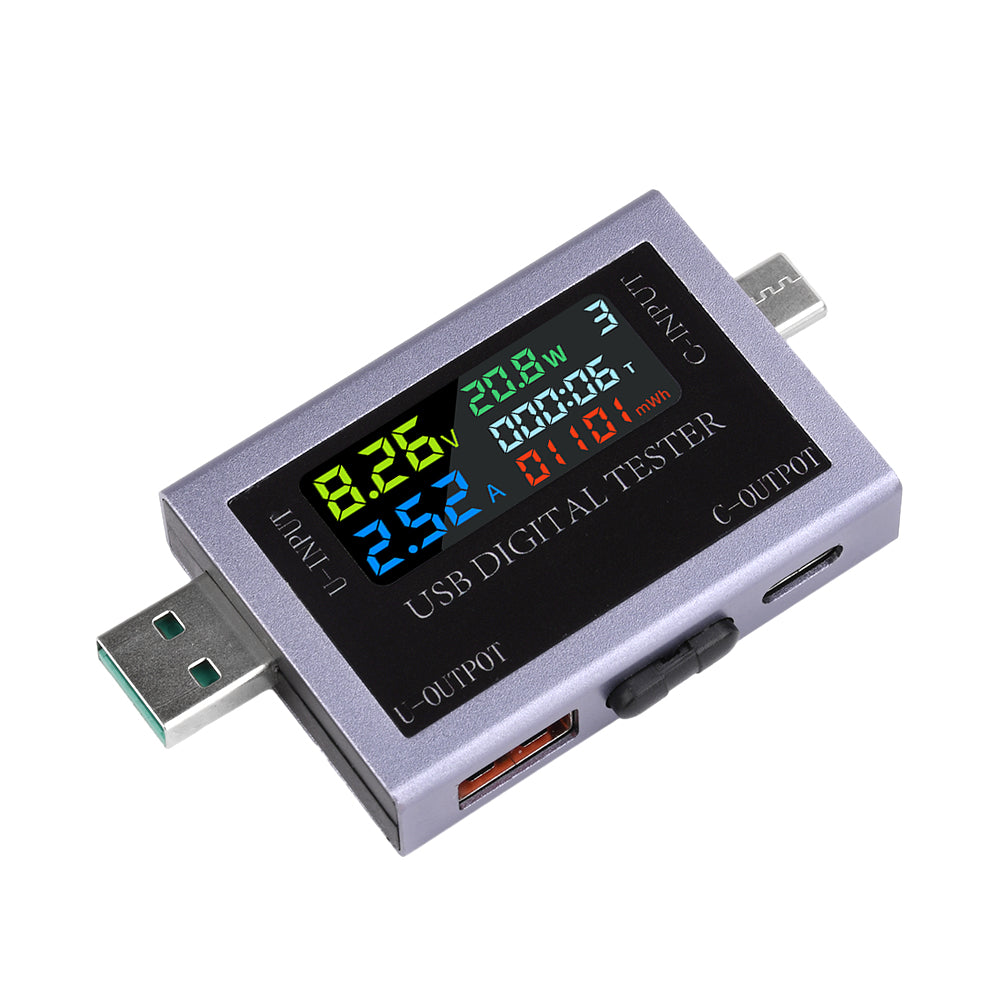

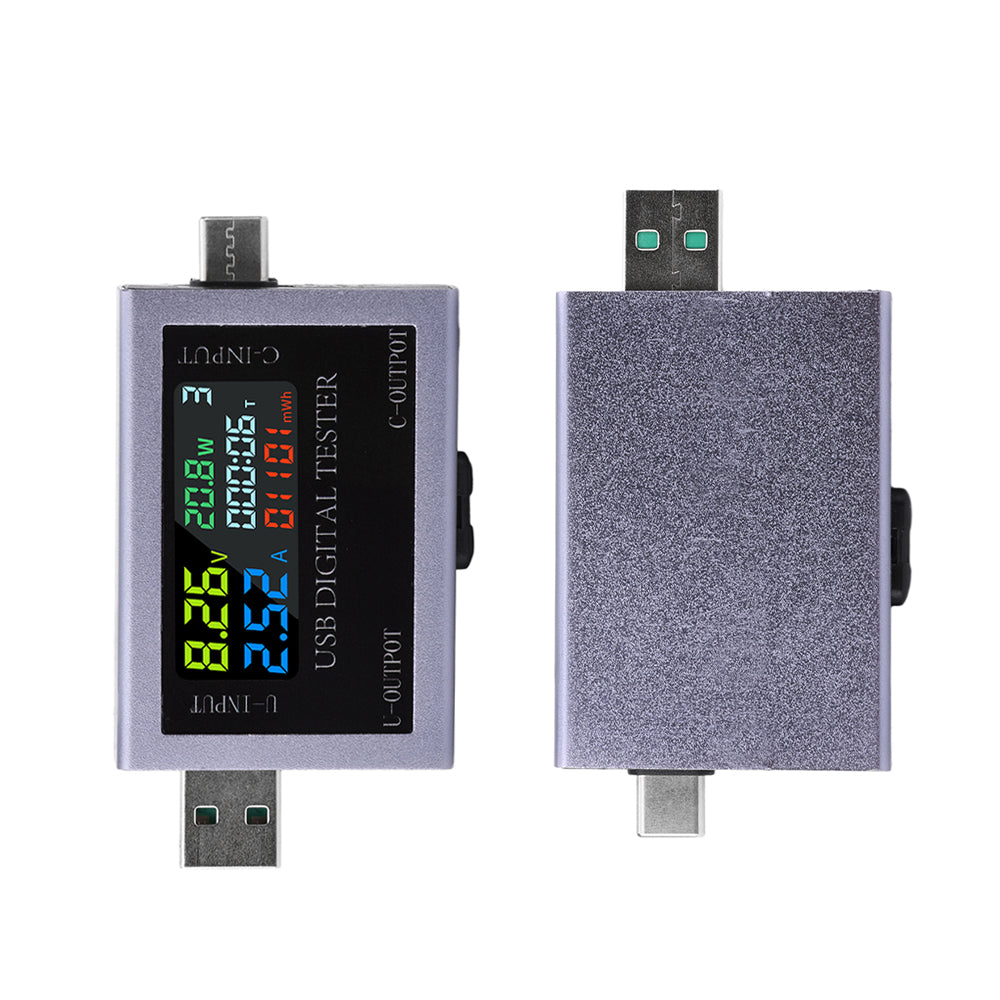

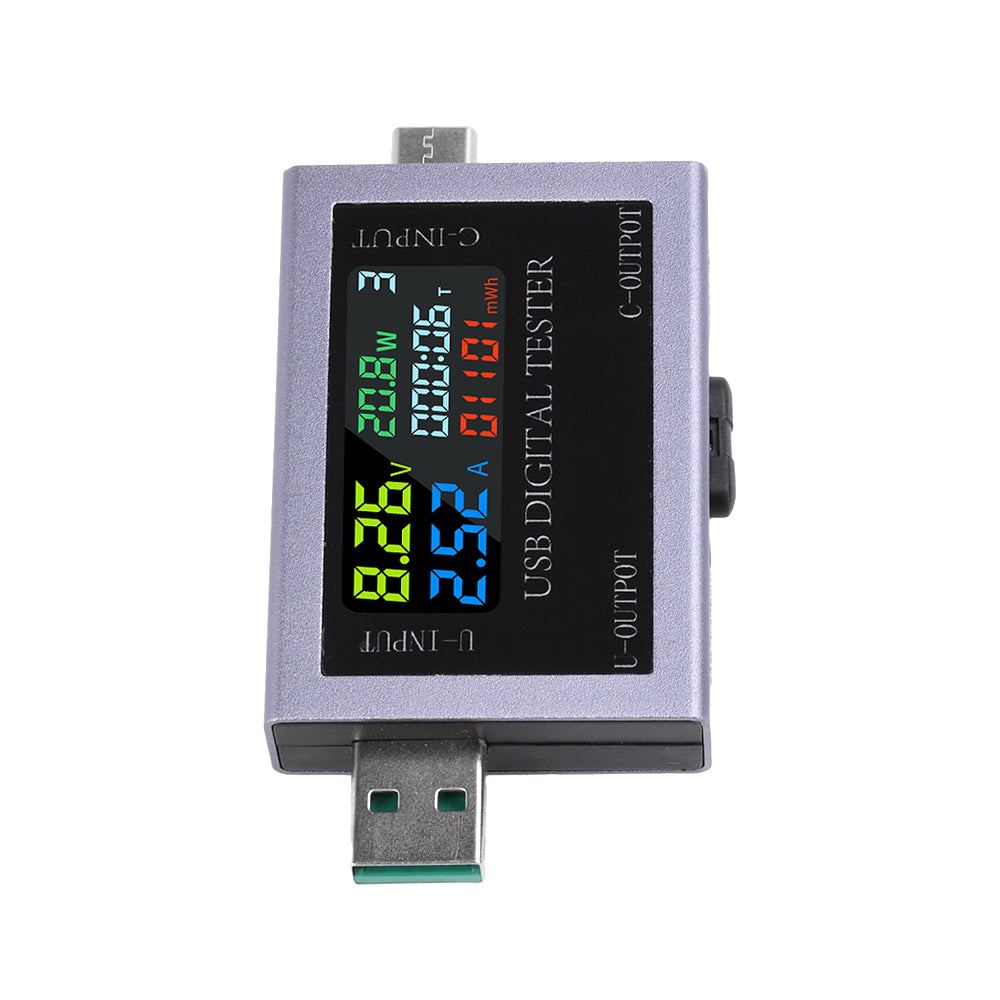

Dual USB Type-C Tester

Dual USB Type-C Tester DC 4.5-50V 0-8A Multi-function Digital Display Voltage Ammeter Power Meter Power Bank Charging Tester

Features:
1. Current, voltage, power, power, capacity, capacity, resistance, timing time, capacity group number, temperature, quick recognition and many other parameters, a screen display a variety of parameters.
2. It can detect the charging status of the electrical appliances in real time, and monitor the charging voltage and current in real time and other parameters information at a glance.
3. Display on/off function: through the multifunctional key short press switch interface to the rest screen interface for the off display, can also be normal to the device charging night charging.
4.Easily test a variety of chargers, data cables, rechargeable batteries, notebooks, cell phones, Type-C digital devices and so on.
5. A variety of fast charging protocols automatically detect, support PD2.0, 3.0, PPS, QC2.0, 3.0, AFC, PE, etc., to improve the charging efficiency, real-time detection of charging status.

Parameter:
Voltage measurement range: DC 4.5~50V
Current measurement range: 0-5A/0-8A
Capacity totalization range: 0-99999mAh
Power Accumulation Range: 0-99999mWh
Power measurement range: 0-150W
Impedance measurement range: 1-999.9Ω
Temperature measurement range: 0-80℃
Timing time: 999 hours and 59 minutes
Input interface: Type-C interface
Output Interface: Type-C
Refresh time: >500mS/times >500mS/times
Measurement rate: about 0.5 times/second
Display: IPS true color digital LCD screen
Self-consumption current: <0.02A
Operating Temperature: -10~60°C
Working humidity: 10~80%RH (no condensation)
Working air pressure: 80~106kPa

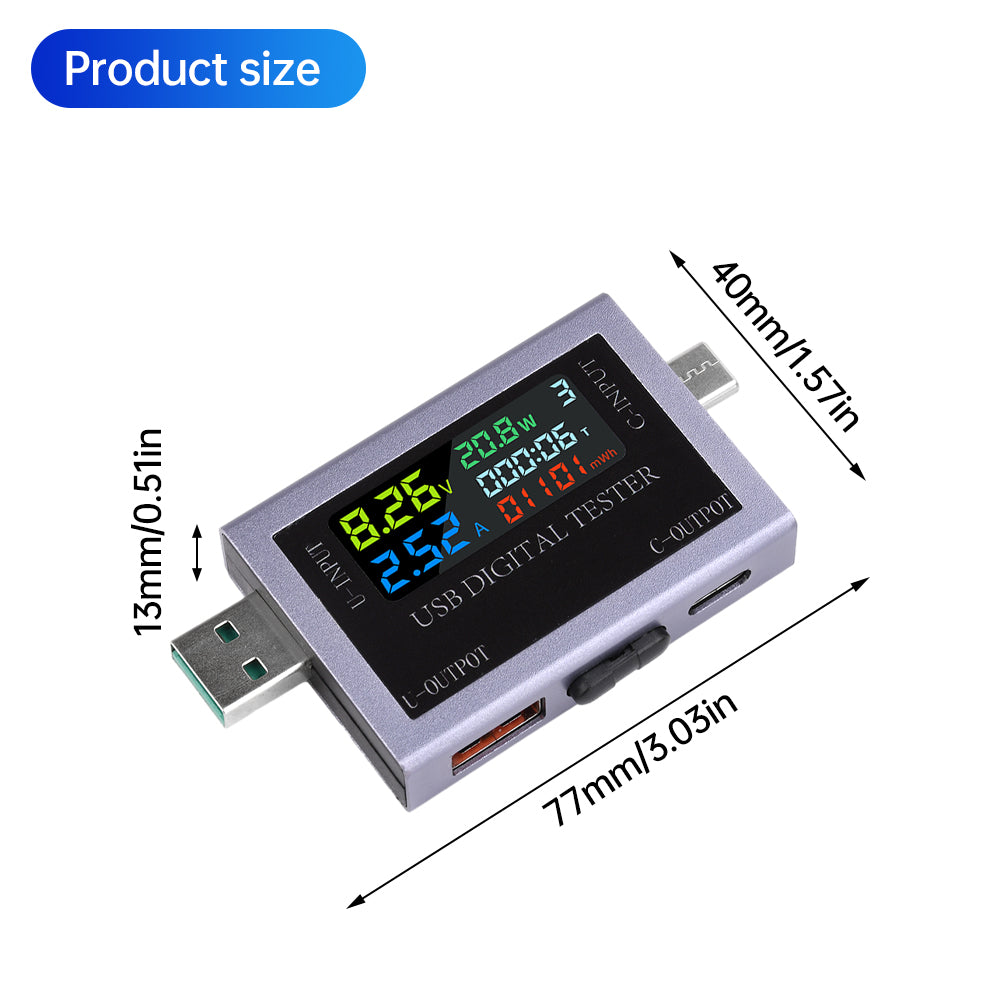

Product size:
Type-C：74*28*13mm
USB+Type-C：77*40*13mm
Multi-function button operation instructions:
Short press mode button
1: is to switch the screen
2: Quickly triple-tap the switch button to reset the power to zero (mWh) and the timing reset to zero the current group (0.00)
3: Long press the on/off button for 2 seconds to change the cumulative data storage group number (NO.X)
